Pipe falling weight impact tester XJL-300C

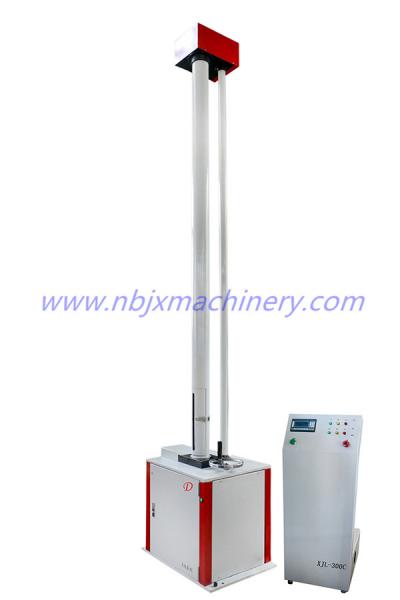

Pictures available of Pipe falling weight impact tester:
Pipe falling weight impact tester Details
Feature:
Suitable for UPVC, CPVC, PPR, PE and underground communication pipe etc plastic pipes impact resistance flexible test. It’s detection and production enterprise, research institutes ideal testing machine.
Parameters and configuration:
|
XJL-300C管材落锤冲击试验机
XJL-300C Pipe Falling Weight Impact Tester
|
|
|
锤体质量
Hammer mass
|
0.250kg~16.00kg，增量为0.100kg和0.250kg
0.250kg-16.00kg, increment 0.100kg and 0.250kg
|
|
落锤质量误差
Drop-hammer mass error
|
＜0.5%（其中2.000kg锤体和1.000kg、2.000kg砝码精度为±0.1%）
＜0.5% (2.000kg hammer and 1.000kg, 2.000kg weight precision is ±0.1%)
|
|
锤头直径
Hammer head diameter
|
D90、D25；注：（SR5、SR10、SR30）根据用户要求选配。
D90、D25 Remark: （SR5、SR10、SR30）according to customer request optional
|
|
冲击高度
Impact height
|
50mm~2000 mm
|
|
高度指示误差
Height indicator error
|
＜±2 mm
|
|
试样直径
Sample diameter
|
Φ10mm~Φ500 mm
|
|
提锤速度
Up hammer speed
|
10 m/min
|
|
放锤控制方式
Drop hammer control type
|
气动
Pneumatic
|
|
外形尺寸
Dimension
|
长1100mm×宽570mm×高3710mm
Length*width*height 1100mmx570mmx3710mm
|
|
所需空间
Space needed
|
推荐前后1.5m, 左右0.5m,上部0.5m（要求实验室高度最低4米）
Recommend front and back 1.5m, left and right 0.5m, up 0.5m
(request laboratory height at least 4m)
|
Remark: The tester need client equipped with air compressor by himself, Max. air pressure is 1.0MPa.
