Simply supported beam impact testing machine XJJD-50A

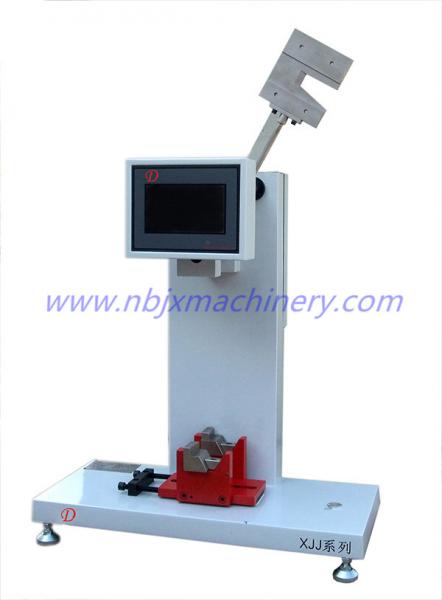

Pictures available of Simply supported beam impact testing machine:
Simply supported beam impact testing machine Details
Suitable for PP-H, PP-B, PPR, UPVC, CPVC, ABS and ASA pipe etc.
This product testing range wide, with PLC touch screen control and display, testing result auto calculate and with U-disc storage data function, can be edit printing, and with energy loss auto amend function, easy operation and testing result precise and reliable.
Parameters and configuration:
|
触摸屏控制简支梁冲击试验机XJJD-50A
XJJD-50A Simply supported beam impact testing machine
|
||||||
|
冲击能量
Impact energy
|
15 J
|
|||||
|
冲击速度
Impact speed
|
3.8 m/s
|
|||||
|
摆锤预扬角
Bob pre-angle
|
150°
|
|||||
|
冲击刃圆角半径
Impact blade fillet radius
|
(2±0.5）mm
|
|||||
|
冲击摆力矩
Impact pendulum torque
|
pd7.5=4.01924 Nm
|
pd15=8.03848 Nm
|
||||
|
pd25=13.39746 Nm
|
pd50=26.79492 Nm
|
|||||
|
打击中心距
Hit center distance
|
395 mm
|
|||||
|
冲击刀刃夹角
Impact blade included angle
|
（30±1）º
|
|||||
|
钳口圆角半径
Jaw fillet radius
|
（1.0±0.1）mm
|
|||||
|
钳口支撑线间距离
Jaw support line distance
|
62 mm
|
|||||
|
刻度盘分度
Scale division
|
能量范围（J）：
Energy range (J):
|
0～7.5
|
0～15.0
|
0～25.0
|
0～50.0
|
|
|
分 度 值（J）：
Dividing value (J):
|
0.075
|
0.150
|
0.250
|
0.500
|
||
|
仪器尺寸
Dimension
|
长550mm×宽300mm×高890mm
Length*width*height 550mmx300mmx890mm
|
|||||
|
所需空间
Space needed
|
前后0.4m, 左右1.5m,上部1.5m
Front and back 0.4m, left and right 1.5m, up 1.5m
|
|||||
|
电 源
Power supply
|
100VA 220VAC 50HZ
|
|||||
