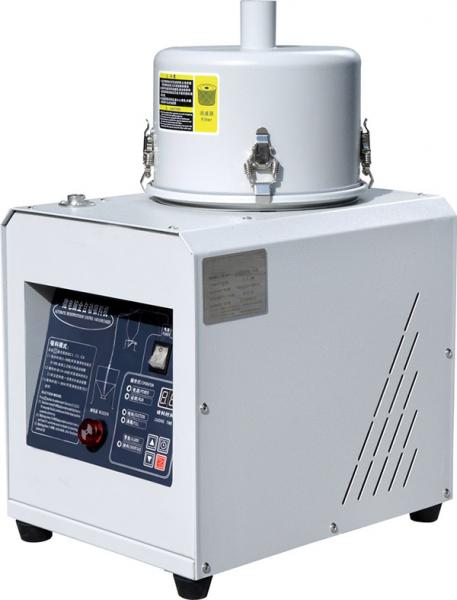

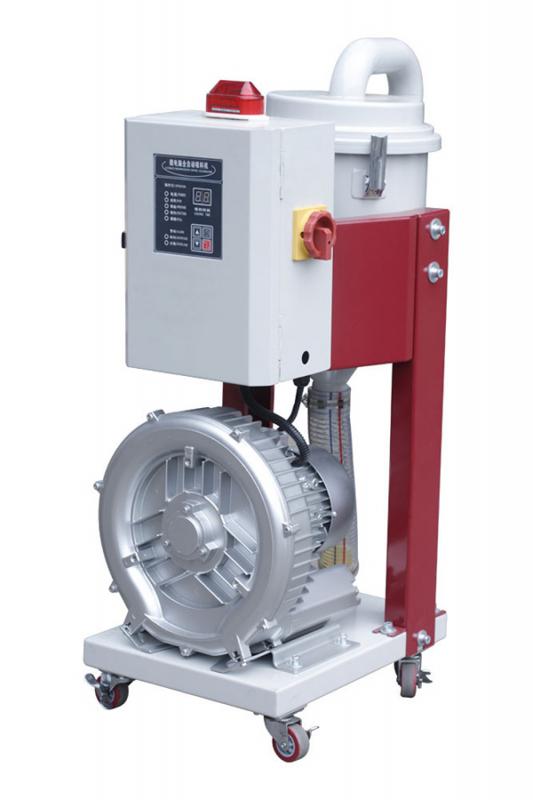

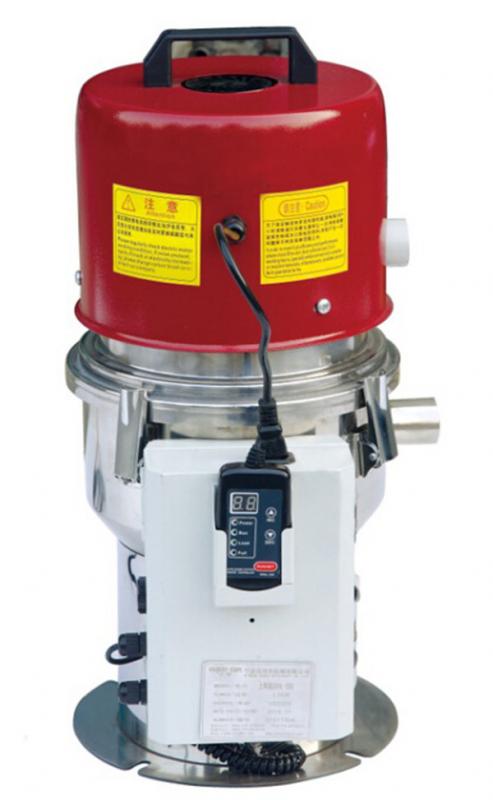

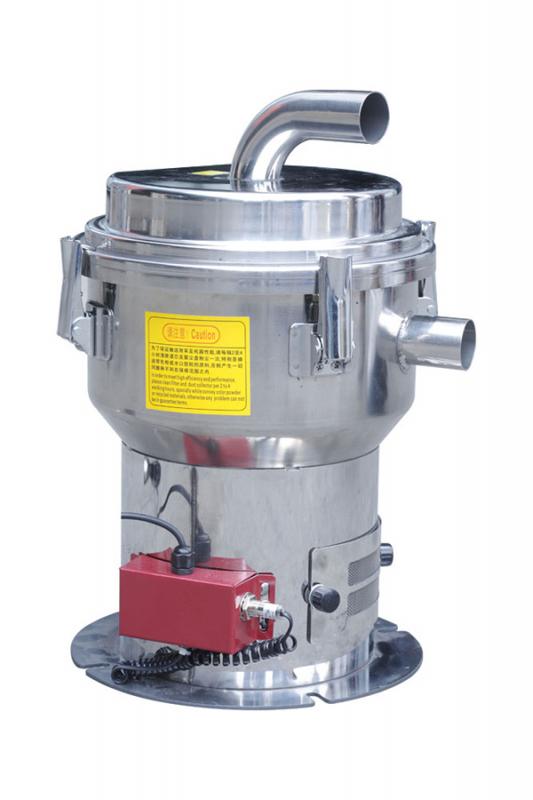

Auto loader FAL Series

Auto loader » FAL Series
Click to enlarge

Pictures available of Auto loader:

FAL Series

Auto loader

Model: FAL Series

Enquiry Now

Auto loader Details

Features:


1. Controller and hopper are separate. It’s safe and easy.
2. Microcomputer control.
3. Independent filter for cleaning dust easily.
4. Silencer reduces running noise.
5. Stainless steel hopper is light, durable and easy-cleaning.
6. Independent control box for easy maintenance.
7. Auto alarm for lack of material.
8. Auto protection for overload in motor.




Main parameter:



规格型号 / Model
FAL-300C
FAL-400G
FAL-2HP
FAL-5HP
FAL-7.5HP
马达
Motor
形式
Type
碳刷式
Carbon brush
感应式
Induction
感应式
Induction
感应式
Induction
感应式
Induction
规格
Spec.
1.1KW/1.5HP
1Φ
0.75KW/1HP
3Φ
1.5KW/2.0HP
3Φ
3.8KW/5HP
3Φ
5.5KW/7.5HP
3Φ
输送能力
Capacity (Kg/h)
300
300
500
600
800
静风压
Air Pressure (mm/H2O)
1800
1400
2400
2400
2400
吸料扬程
Convey distance (m)
4
4
4
6
8
储料桶容量
Hopper volume (L)
9
10
12
24
50
输料管内径
Suction pipe (mm)
Φ38
Φ38
Φ38
Φ51
Φ63
外形尺寸
Dimension
主机
Controller (cm)


42×38×64
55×40×76
105×60×135
储料桶
Hopper (cm)
34×34×59
45×37×66
45×32×45
40×30×56
40×30×102
重量
Weight
主机
Controller (kg)


47
90
135
储料桶
Hopper (kg)
12
27
7
10
12
