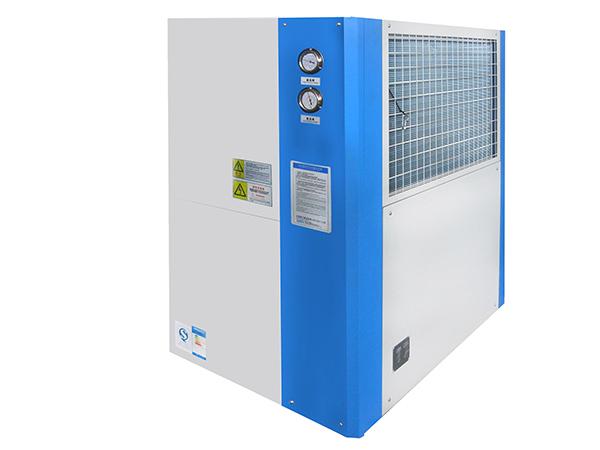

Chiller LS Series
Chiller
Model: LS Series
We can provide different water cooling & air cooling type chiller as customer request.
Chiller Details
Features & Application:
1. The compressor and main cooling part are imported. It is composed of single machine or double machine. It can be used alone or together. The power efficiency is high.
2. Condenser is efficient. It’s good for heat transmission.
3. Air cooling is the most advanced cooling way. It does the best for rejection of heat. No need cooling tower. Easy installation and maintenance.
4. Perfect protection and error indication system.
5. It is mainly used for cooling injection mould, hollow shaping, extrusion sizing, oil cooling in tooling machine and ultrasonic cooling. It saves cyclic time and increases productivity.

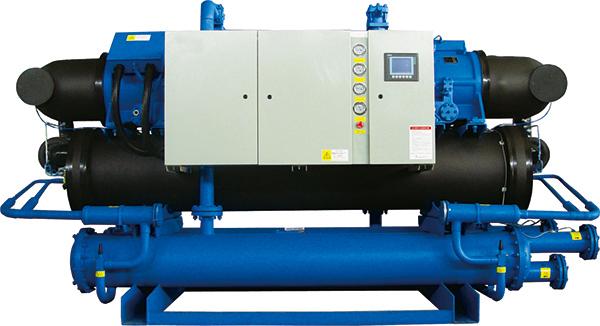

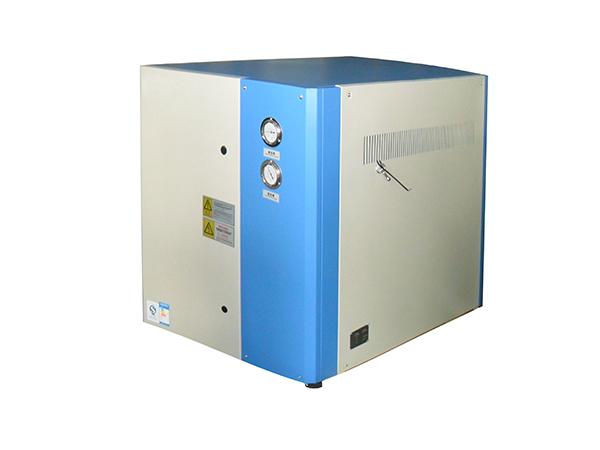

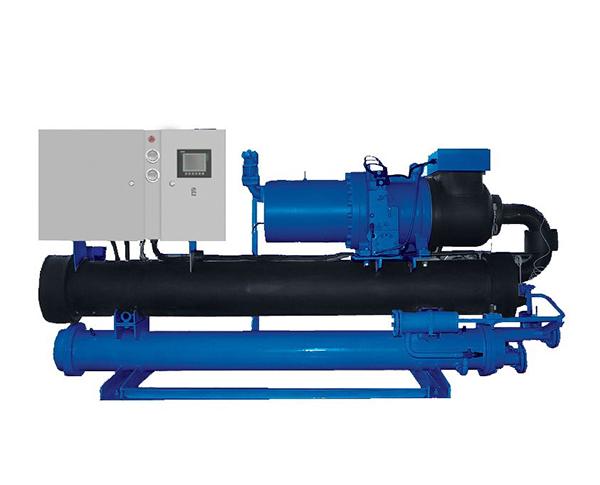

Technical Parameter: （Water Cooling Chiller）
|
规格型号/ Model
|
LS-05S
|
LS-10S
|
LS-15S
|
LS-20S
|
LS-30S
|
|
电源/ Power supply
|
3Φ-380V±10% 50HZ
|
||||
|
温控范围
Control range (℃)
|
5-30
|
||||
|
温控精度
Precision (℃)
|
±2
|
||||
|
制冷量
Cooling capacity (KW) (kcal/h)
|
12.8
|
26.64
|
43.410
|
26.64×2
|
43.41x2
|
|
11000
|
22910
|
37332
|
22910×2
|
37332x2
|
|
|
压缩机功率
Compressor Power (kW)
|
3.7
|
6.51
|
10.84
|
6.51×2
|
10.84x2
|
|
制冷剂/ Cryogen
|
R22
|
||||
|
冷冻水流量
Cold water flux (L/min)
|
50
|
120
|
150
|
220
|
300
|
|
安全保护装置
Protection device
|
高低压、过载、防冻/ high & low voltage、overload、frozen
|
||||
|
冷却水接管
Connect pipe
|
1″
|
1½″
|
1½″
|
2″
|
2-½″
|
|
水箱容积
Tank capacity (L)
|
70
|
600
|
700
|
1300
|
1400
|
|
冷冻水进出水管
Water inlet/outlet pipe
|
1″
|
1½″
|
2″
|
2″
|
2-½″
|
|
外形尺寸
Dimension
(Lx W× H)（mm）
|
920×490×950
|
1700×900×1300
|
1800×1000×1400
|
1900×1200×1400
|
1900×1200×1400
|

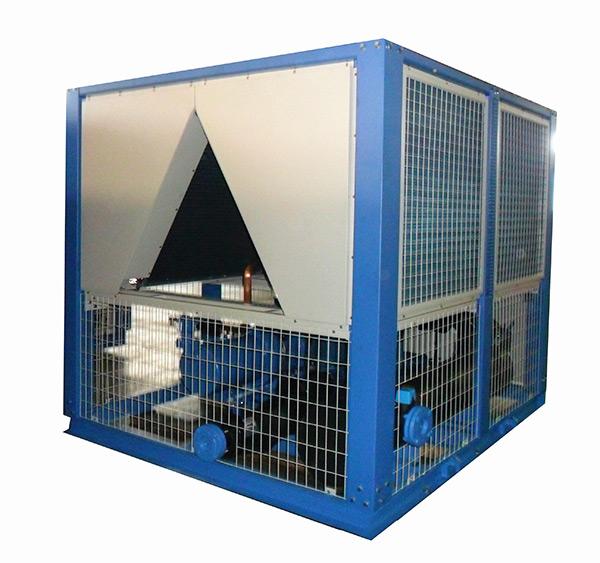

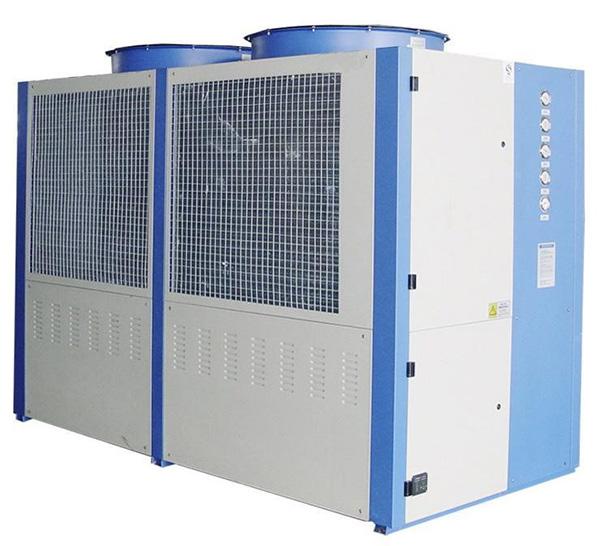

Technical Parameter: （Air Cooling Chiller）
|
规格型号/ Model
|
LS-05F
|
LS-10F
|
LS-15F
|
LS-20F
|
LS-30F
|
|
电源/ Power supply
|
3Φ-380V±10% 50HZ
|
||||
|
温控范围
Control range (℃)
|
5-30
|
||||
|
温控精度
Precision (℃)
|
±2
|
||||
|
制冷量
Cooling capacity
(KW) (kcal/h)
|
12.4
|
22.87
|
37.56
|
40.1
|
46.15
|
|
10700
|
19670
|
32300
|
34486
|
39689
|
|
|
压缩机功率
Compressor Power (kW)
|
3.7
|
7.4
|
12.38
|
13.98
|
18.65
|
|
制冷剂/ Cryogen
|
R22
|
||||
|
冷冻水流量
Cold water flux
(L/min)
|
50
|
120
|
150
|
不带水泵
Without
water pump
|
不带水泵
Without
water pump
|
|
安全保护装置
Protection device
|
高低压、过载、防冻/ high & low voltage、overload、frozen
|
||||
|
风机功率
Connect pipe (kW)
|
0.4
|
0.75
|
0.75
|
0.75×2
|
1x2
|
|
冷冻水进出水管
Water inlet/outlet pipe
|
1″
|
2″
|
2″
|
2″
|
2-½″
|
|
水箱容积
Tank capacity (L)
|
75
|
180
|
200
|
干式蒸发器
Dry evaporator
|
干式蒸发器
Dry evaporator
|
|
外形尺寸
Dimension
(Lx W× H)（mm）
|
1400×800×1050
|
1700×1000×1300
|
1800×1000×1400
|
2000×1000×1600
|
2000×1200×1700
|
Remark: According to customer request and environment conditions, we can equipped with different model industrial chiller to match client special request.
